SFSP Lebanon’s Metal Framing Systems provide an economical solution for electrical, mechanical and industrial supports with a wide variety of applications in the construction industry.
Applications: – Pipe and Conduit Supports – Tunnel Pipe Stanchions – Racks and Shelvings – Wall Framings
Standards:
– IEC 61537:2007– BS EN 61537:2007
– NEMA VE 1 – 2009
– NEMA VE 2 – 2006
– NEC (ANSI / NFPA 70)
General Information

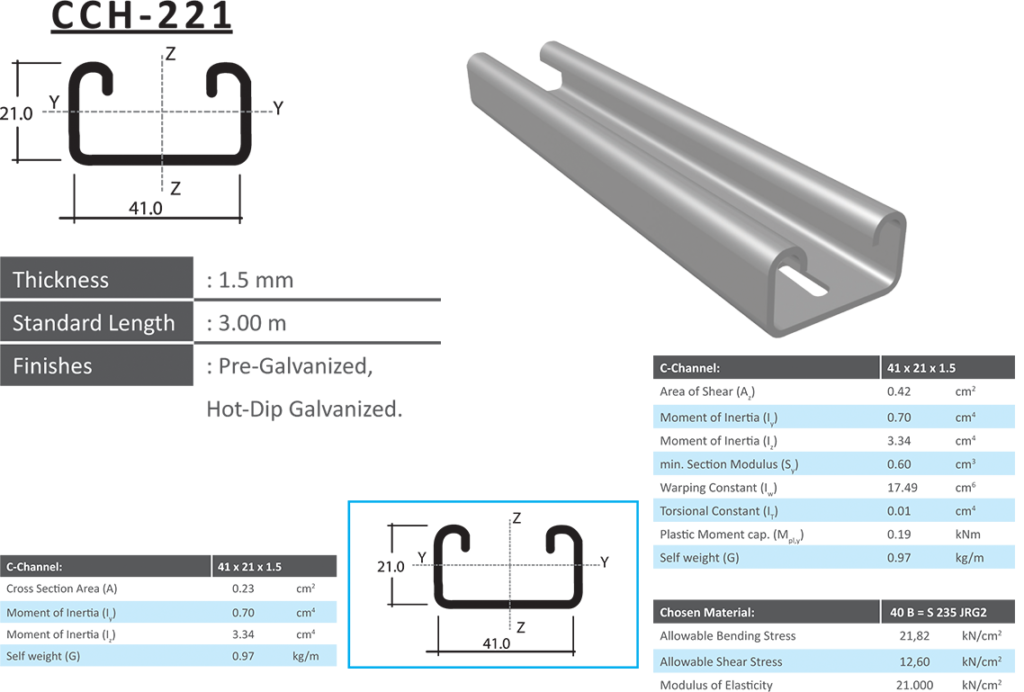

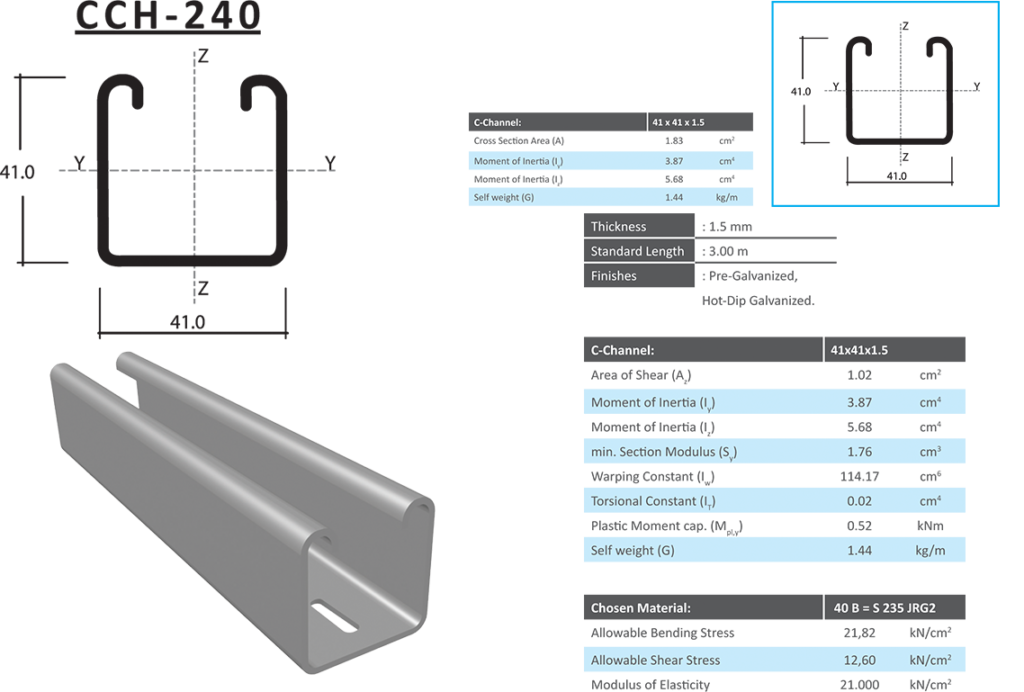

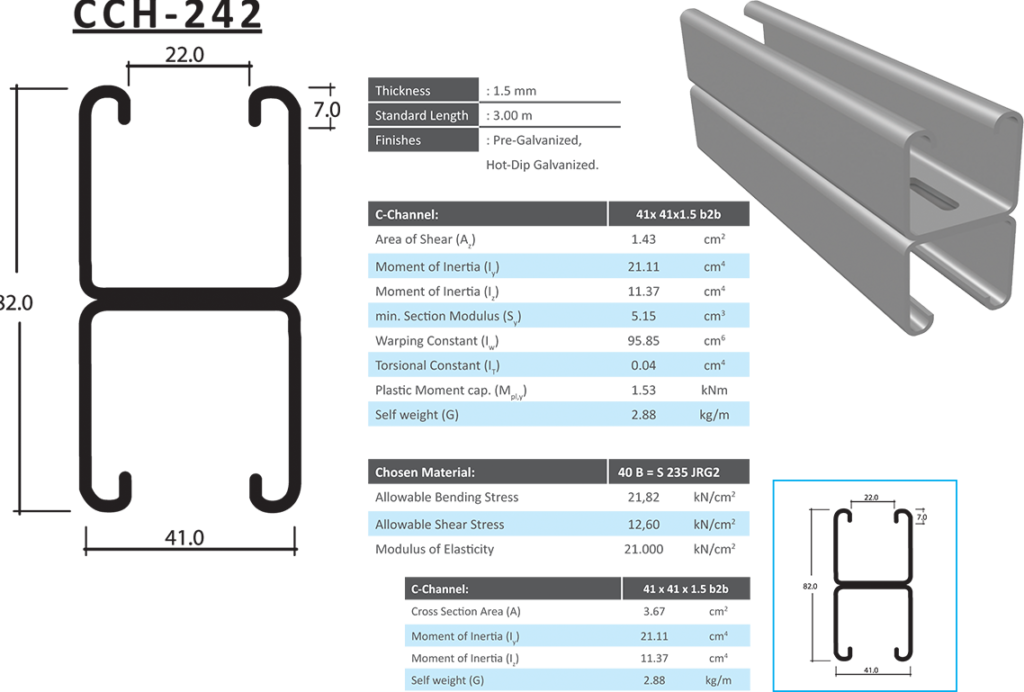

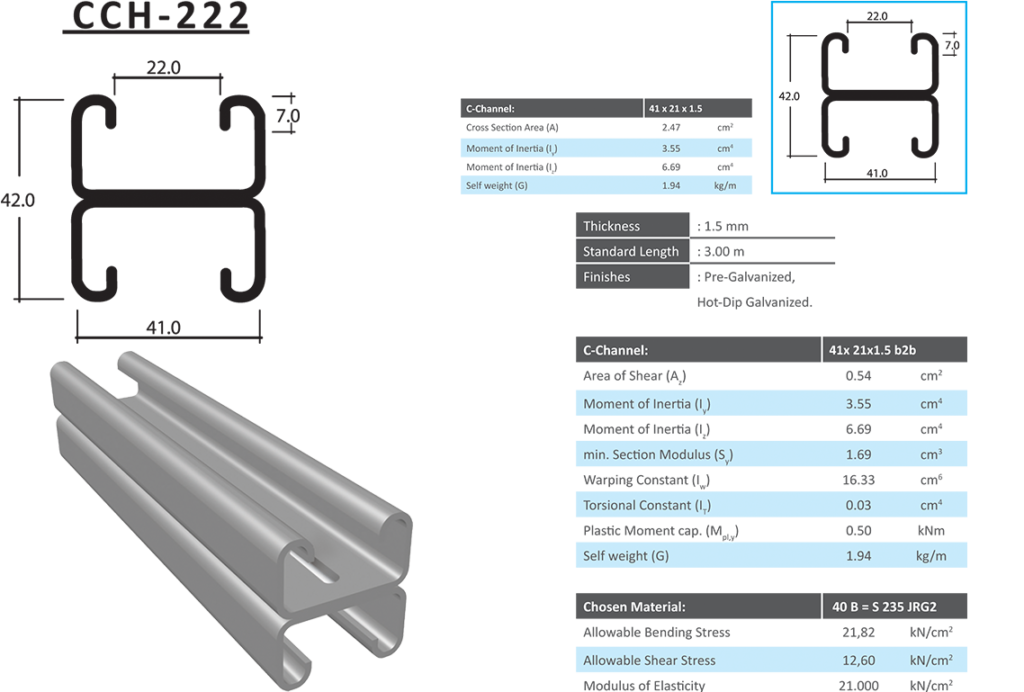

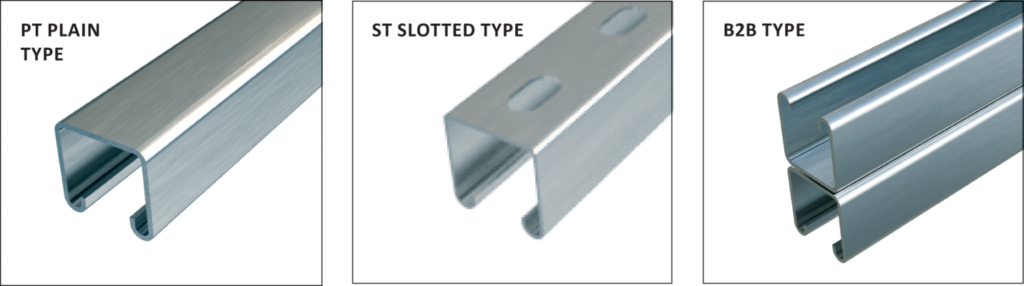

Channele
SFSP Lebanon’s metal framing channel is cold formed on modern rolling machines from low carbon steel manufactured according to BS 6946:1988. a continuous slot provides the ability to make attachments at any point.Lengths
Standard length: 3000mm with ± 3.2mm length tolerance. custom lengths are available upon request.Finishes
Standard finishes: Pre-Galvanized finish (ASTM A653m coating G90 and G60).Hot dip Galvanized after fabrication (ASTM A123 or BS EN ISO1461:2009).
Other custom coatings are available upon request.
