Cable Ladders

Cable Trays Ladder, are designed to meet most requirements of cable and electrical wire installations and comply to local and international standards of fabrication and finishing.

Standards:

– IEC 61537:2007
– BS EN 61537:2007
– NEMA VE 1 – 200
– NEMA VE 2 – 2006
– NEC (ANSI / NFPA 70)

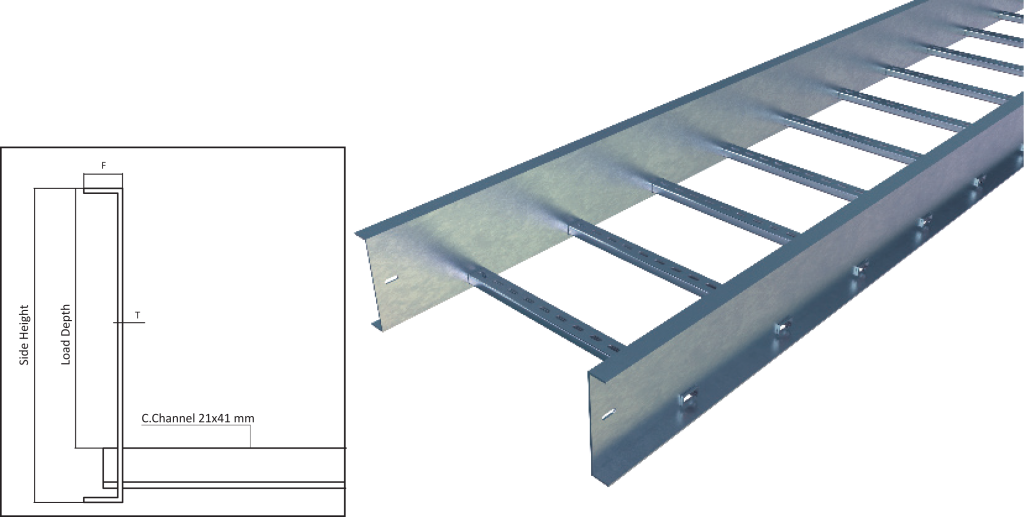

Rung Types (Swaged and Channel)

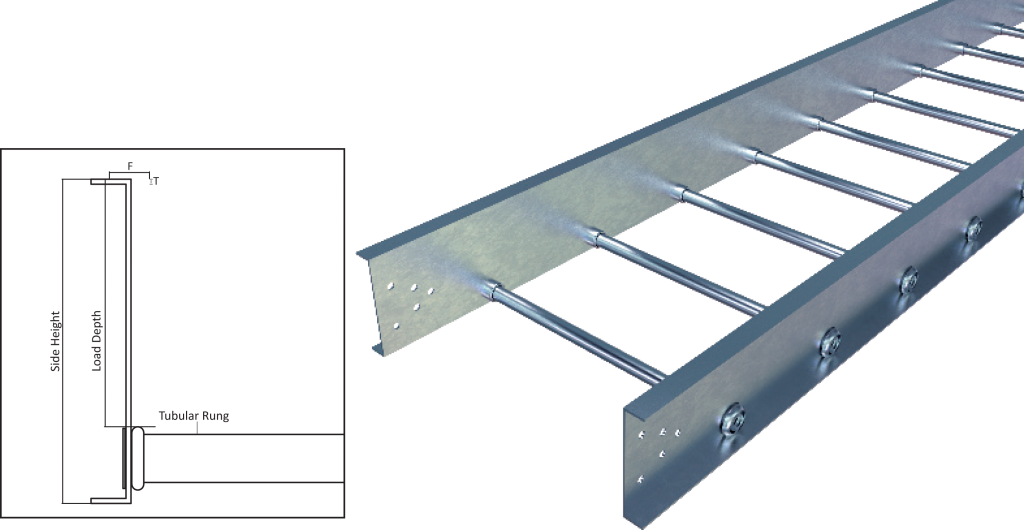

Swaged Type (Aluminum & Steel)

Rounded tubular with 25 mm diameter
Rung standard spacing 229 mm

Channel Type (Steel)

Plain or slotted, and can be mounted upwards or downwards.
Rung standard spacing 229 mm.

Materials

Pre-Galvanized, Hot-Dip Galvanized, Stainless Steel and Aluminium.

Material Thickness

1.0 mm | 1.20 mm | 1.50 mm | 2.00 mm

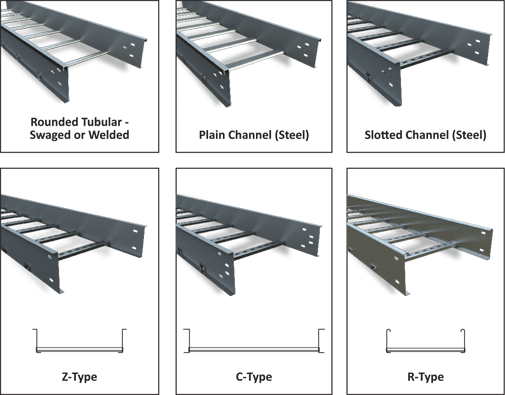

LADDER TYPE RUNS ALUMINUM SECTION

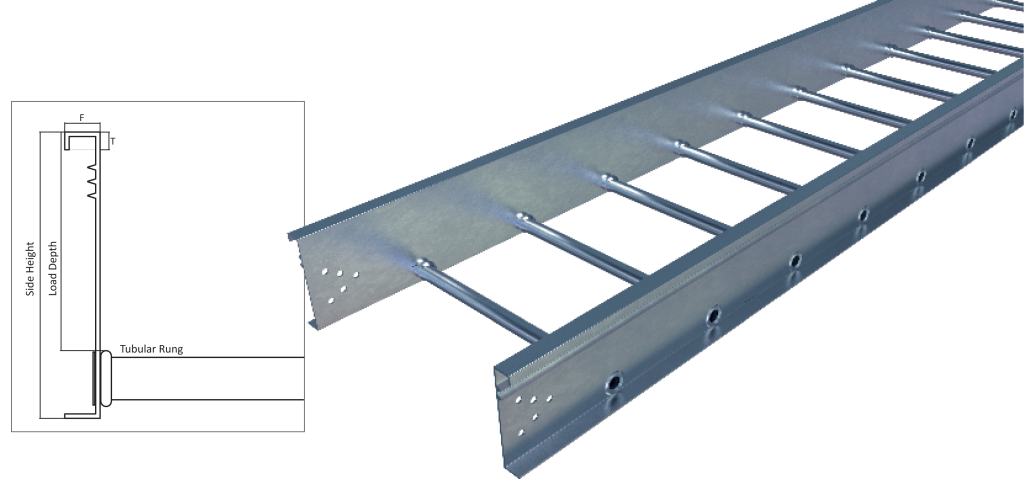

SWAGED TUBULAR RUNG

ALUMINUM 6063 T6
NEMA Class A (52 kg/m by 3.0m) and 8A (95 kg/m by 2.40m)
NEMA Class C (97.0 kg/m by 3.0 m)
NEMA Class 12 A (74 kg/m by 3.70 m)
NEMA Class 12 B (134 kg/m by 3.70 m)

STEEL LADDER TYPE RUNS STEEL SECTION

SWAGED TUBULAR RUNG

STEEL S235 JRG2
NEMA Class 8C (149 kg/m by 2.40m)
NEMA Class 12A (74 kg/m by 3.70m)
NEMA Class 12B (118 kg/m by 3.70m)
NEMA Class 12A (74 kg/m by 3.70m)
NEMA Class 12B (123 kg/m by 3.70m)
NEMA Class 16A (82 kg/m by 4.90m)
NEMA Class 12A (87 kg/m by 3.70m)
NEMA Class 12C (150 kg/m by 3.70m)
NEMA Class D (67 kg/m by 6.0m)

WELDED C-CHANNEL LADDER TYPE RUNS SECTION

WELDED C-CHANNEL

STEEL S235 JRG2
NEMA Class 8C (149 kg/m by 2.40m)
NEMA Class 12A (74 kg/m by 3.70m)
NEMA Class 12B (118 kg/m by 3.70m)
NEMA Class 12A (74 kg/m by 3.70m)
NEMA Class 12B (123 kg/m by 3.70m)
NEMA Class 16A (82 kg/m by 4.90m)
NEMA Class 12A (87 kg/m by 3.70m)
NEMA Class 12C (150 kg/m by 3.70m)
NEMA Class D (67 kg/m by 6.0m)

FITTINGS

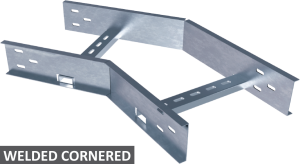

BEND 45°

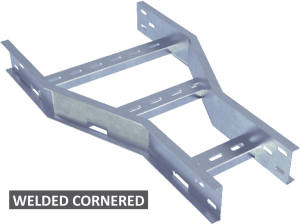

WELDED CORNERED
THICKNESS: 2.00 & 2.50mm
Side Height: 105 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 130 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 155 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm

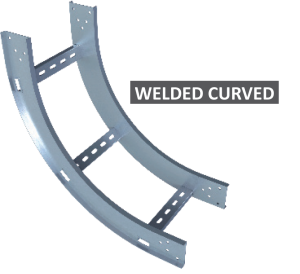

BEND 45°

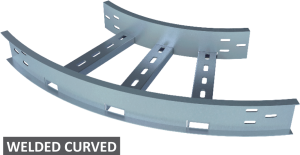

WELDED CURVED
THICKNESS: 2.00 & 2.50mm
Side Height: 105 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 130 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 155 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm

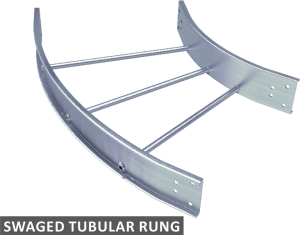

BEND 45°

SWAGED TUBULAR RUNG
THICKNESS: 2.00 & 2.50mm
Side Height: 105 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 130 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 155 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm

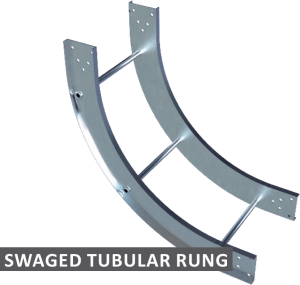

BEND 90°

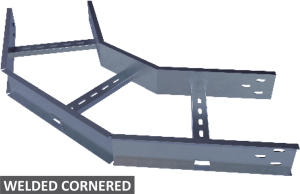

WELDED CORNERED
THICKNESS: 2.00 & 2.50mm
Side Height: 105 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 130 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 155 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm

BEND 90°

WELDED CURVED
THICKNESS: 2.00 & 2.50mm
Side Height: 105 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 130 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 155 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm

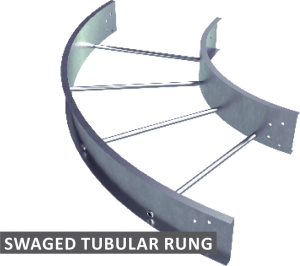

BEND 90°

SWAGED TUBULAR RUNG
THICKNESS: 2.00 & 2.50mm
Side Height: 105 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 130 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 155 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm

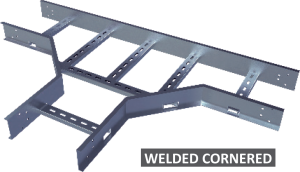

TEE BRANCH

WELDED CORNERED
THICKNESS: 2.00 & 2.50mm
Side Height: 105 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 130 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 155 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm

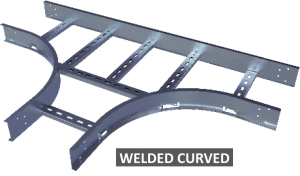

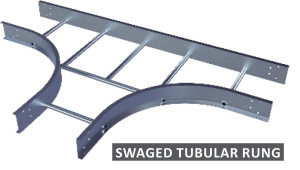

TEE BRANCH

WELDED CURVED
THICKNESS: 2.00 & 2.50mm
Side Height: 105 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 130 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 155 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm

TEE BRANCH

SWAGED TUBULAR RUNG
THICKNESS: 2.00 & 2.50mm
Side Height: 105 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 130 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 155 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm

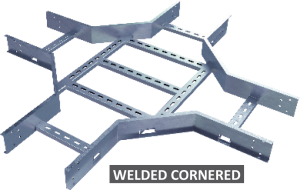

HORIZONTAL CROSS (INTERSECTION)

WELDED CORNERED
THICKNESS: 2.00 & 2.50mm
Side Height: 105 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 130 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 155 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm

HORIZONTAL CROSS (INTERSECTION)

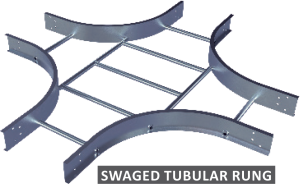

SWAGED TUBULAR RUNG
THICKNESS: 2.00 & 2.50mm
Side Height: 105 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 130 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 155 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm

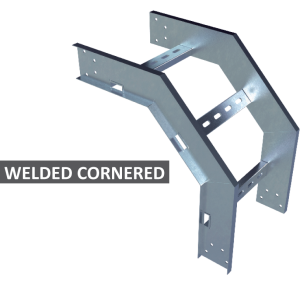

INSIDE VERTICAL ELBOW (INSIDE RISER)

WELDED CORNERED
THICKNESS: 2.00 & 2.50mm
Side Height: 105 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 130 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 155 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm

INSIDE VERTICAL ELBOW (INSIDE RISER)

WELDED CORNERED
THICKNESS: 2.00 & 2.50mm
Side Height: 105 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 130 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 155 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm

INSIDE VERTICAL ELBOW (INSIDE RISER)

SWAGED TUBULAR RUNG
THICKNESS: 2.00 & 2.50mm
Side Height: 105 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 130 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 155 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm

OUTSIDE VERTICAL ELBOW (OUTSIDE RISER)

WELDED CORNERED
THICKNESS: 2.00 & 2.50mm
Side Height: 105 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 130 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 155 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm

OUTSIDE VERTICAL ELBOW (OUTSIDE RISER)

WELDED CURVED
THICKNESS: 2.00 & 2.50mm
Side Height: 105 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 130 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 155 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm

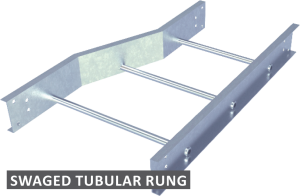

STRAIGHT CENTRAL REDUCERS

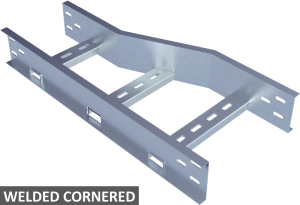

WELDED CORNERED
THICKNESS: 2.00 & 2.50mm
Side Height: 105 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 130 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 155 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm

STRAIGHT CENTRAL REDUCERS

SWAGED TUBULAR RUNG
THICKNESS: 2.00 & 2.50mm
Side Height: 105 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 130 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 155 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm

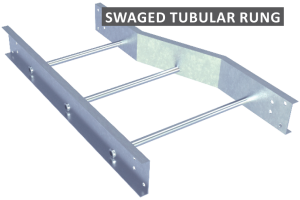

RIGHT HAND REDUCERS

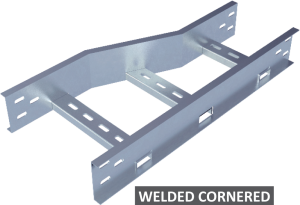

WELDED CORNERED
THICKNESS: 2.00 & 2.50mm
Side Height: 105 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 130 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 155 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm

RIGHT HAND REDUCERS

SWAGED TUBULAR RUNG
THICKNESS: 2.00 & 2.50mm
Side Height: 105 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 130 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 155 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm

LEFT HAND REDUCERS

WELDED CORNERED
THICKNESS: 2.00 & 2.50mm
Side Height: 105 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 130 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 155 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm

LEFT HAND REDUCERS

SWAGED TUBULAR RUNG
THICKNESS: 2.00 & 2.50mm
Side Height: 105 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 130 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
Side Height: 155 mm
Widths: 150, 225, 300, 450, 600, 750, 900 mm
