Cable Trays are designed to meet most requirements of cable and electrical wire installations and comply to local and international standards of fabrications and finishes.
Standards:
– IEC 61537:2007– BS EN 61537:2007
– NEMA VE 1 – 200
– NEMA VE 2 – 2006
– NEC (ANSI / NFPA 70)
Types Overview and Components
Cable trays and accessories are manufactured in compliance with BS EN 61537:2007/BS 5750/BS EN 10130/BS EN 10131/ BS EN 10051 and NEMA standards. And, as per cabling standards CENELEC EN 50173-1; EIA/ITA 568 A; ISO/IEC 11801; 2002.Materials
Pre-Galvanized, Hot-Dip Galvanized, Stainless Steel and Aluminium.Material Thickness
1.0 mm | 1.20 mm | 1.50 mm | 2.00 mmTypes Of Side Heights

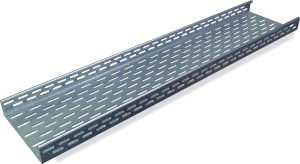

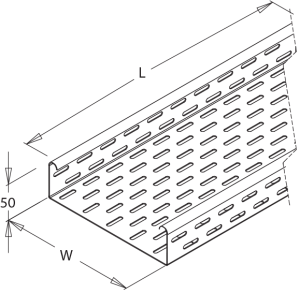

RUNS
LIGHT DUTY LCT 1.00 mm thickness
Side Height: 50 mm
Widths: 50, 100, 150, 200, 225, 300, 400, 450 mm
MEDIUM DUTY MCT 1.20 mm thickness
Side Height: 50mm
Widths: 50, 100, 150, 200, 225, 300, 400, 450 mm
Side Height: 75 mm
Widths: 100, 150, 200, 225, 300, 400, 450 mm
Side Height: 100 mm
Widths: 100, 150, 200, 225, 300, 400, 450 mm
HEAVY DUTY HCT 1.50 mm thickness
Side Height: 50mm
Widths: 50, 100, 150, 200, 225, 300, 400, 450, 500, 600, 700 mm
Side Height: 75mm
Widths: 100, 150, 200, 225, 300, 400, 450, 500, 600, 700 mm
Side Height: 100mm
Widths: 100, 150, 200, 225, 300, 400, 450, 500, 600, 700 mm
LIGHT DUTY LCT 1.00 mm thickness
Side Height: 50 mm
Widths: 50, 100, 150, 200, 225, 300, 400, 450 mm
FITTINGS

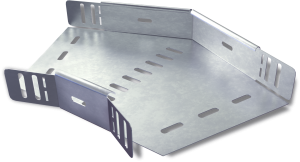

BEND 45°

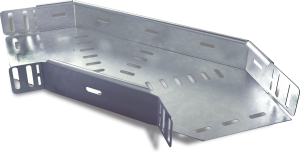

BEND 90°

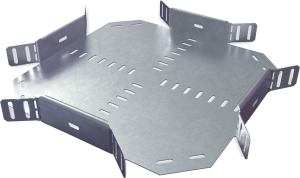

INTERSECTION

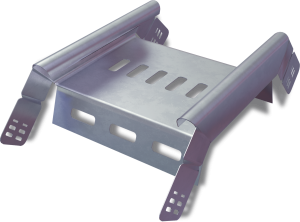

OUTSIDE RISER BEND 45°

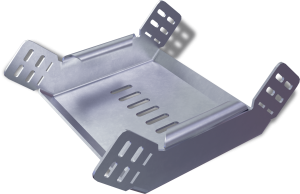

INSIDE RISER BEND 45°
OUTSIDE RISER BEND 90°
INSIDE RISER BEND 90°
REDUCER

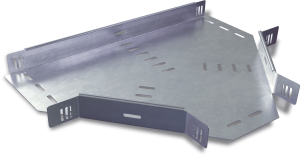

TEE BRANCH
