Stangle Cladding Fixation includes design, calculation and production of several types of mechanical fixings and accessories used for cladding purposes. Stainless and galvanized steel are among the various materials used in the fabrication.
Types of fixings
Principles for the Fixing of Building Cladding
The fixing systems for building cladding are composed of several elements (angles, expansion bolts, screws, nuts, washers, etc), each of which shall present the appropriate mechanical features in respect to the requirements posed by the specific project.Any type of cladding, once fixed, is subject to two primary types of load:
– Permanent load (the dead load), due to the weight of the cladding itself;
– Variable load (applied loads), due to the wind, thermal expansions, seismic motions, etc.
Two fundamental types of fixing systems result:
– Load-bearing fixing: to support the permanent load and the vertical components of the variable loads.
– Restraining fixing: to support the horizontal components of the loads. Restraining fixings instead, serve to maintain the slabs in the positions specified by the project design. Thanks to the systems of adjustment with which they are equipped, the absence of perfect verticality in the external surfaces may be easily overcome.
Types of Facade Building Substructure
1- Stone fixed to concrete wall2- Stone fixed to hollow block wall
3- Stone fixed to solid block
4- Stone fixed to composite substructure
Loads
– Self load = (Dead Load)– Wind load
– Seismic load
– Temperature variation load
PRODUCTS

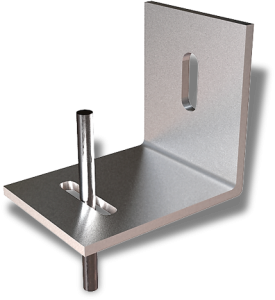

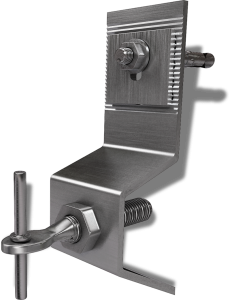

L-Bracket (Standard & Serrated) Type ST- 500 1100 With Pin
Materials: SS304, SS316, SS316L, SS316TI, S235JR-MG, S235JR-HDG

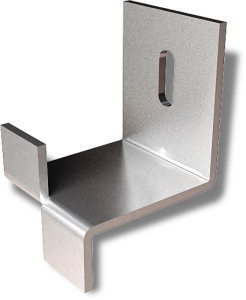

L-Bracket (Standard & Serrated) Type ST- 500 1200 Up and Down Angle
Materials: SS304, SS316, SS316L, SS316TI, S235JR-MG, S235JR-HDG
L-Bracket Type ST- 500 1300 Up Angle
Materials: SS304, SS316, SS316L, SS316TI, S235JR-MG, S235JR-HDG
L-Bracket Type ST- 500 1400 Down Angle
Materials: SS304, SS316, SS316L, SS316TI, S235JR-MG, S235JR-HDG

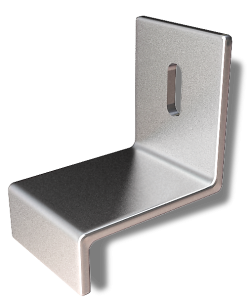

Z-Bracket with Back Leg Type ST- 600 1100
Horizontal Joint
Materials: SS304, SS316, SS316L, SS316TI, S235JR-MG, S235JR-HDG

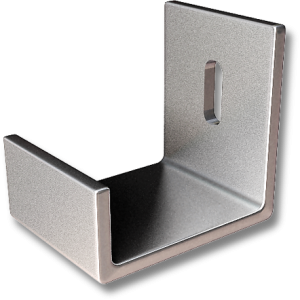

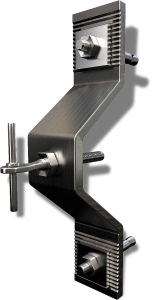

OMEGA BRACKET TYPE ST- 700 1100
Vertical Joint
Materials: SS304, SS316, SS316L, SS316TI, S235JR-MG, S235JR-HDG

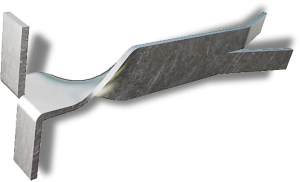

TYPE ST- 800 1100 FISHTAIL UP & DOWN
Materials: SS304, SS316, SS316L, SS316TI, S235JR-MG, S235JR-HDG
Fixing in Concrete and solid block

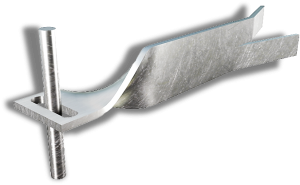

Type ST- 800 1200 Fishtail with Pin
Materials: SS304, SS316, SS316L, SS316TI, S235JR-MG, S235JR-HDG
Fixing in Concrete and solid block

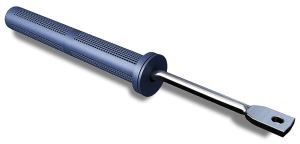

Type ST- 900 1100
Load bearing and restraining corrugated stud.
Material: SS304, SS316, SS316L, SS316TI, S235JR-MG, S235JR-HDG
